Single Sign On

This guide will enable you to setup Wag with Keycloak as an identity provider (IdP). Wag uses OIDC so any identity provider (IdP) that supports setting group names in the OIDC claim will work.
However in this case KeyCloak is a good and easy way to start.

This guide expects that you already have a keycloak realm configured and to be running the latest version of Wag.

If you want to test this in a development enviroment I suggest using the docker container of keycloak.

sudo docker run -p 8080:8080 -e KEYCLOAK_ADMIN=admin -e KEYCLOAK_ADMIN_PASSWORD=admin quay.io/keycloak/keycloak:20.0.2 start-dev

Why?

Setting up an OIDC provider allows you to centrally manage what groups your Wag users are part of, it also allows you to define your own authentication requirements such as account password which Wag does not have.

Configuring KeyCloak

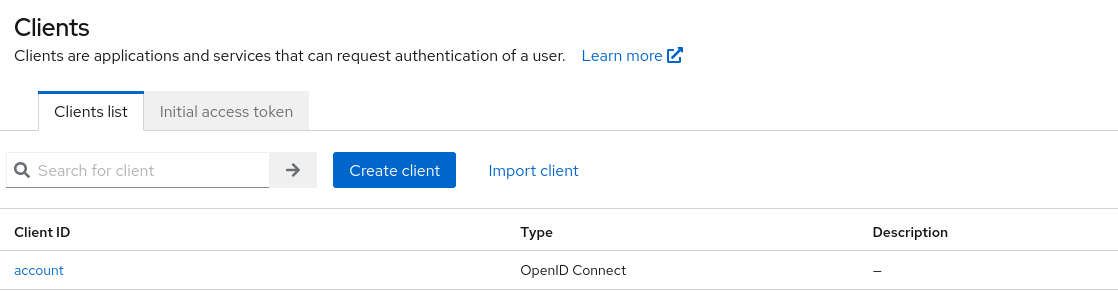

First we must create an OIDC client (in this guide I just used the default account client, but you should have a specific Wag client):

Then click on your created client (in this case account) and go to settings:

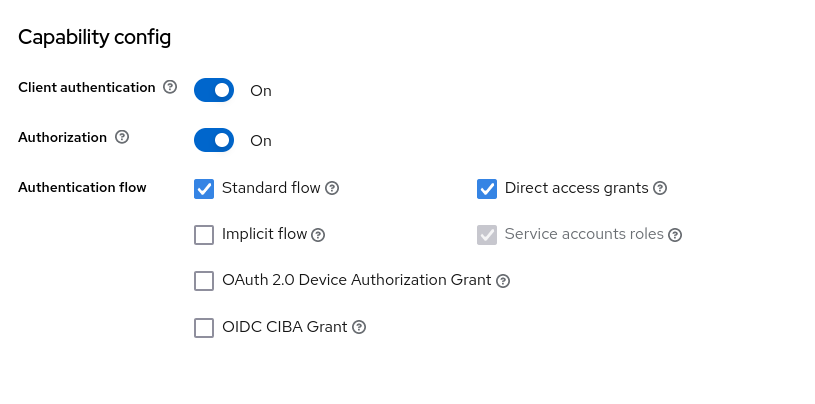

1. Enable Client Authentication, Authorisation, Standard Flow and Direct Access grants like so:

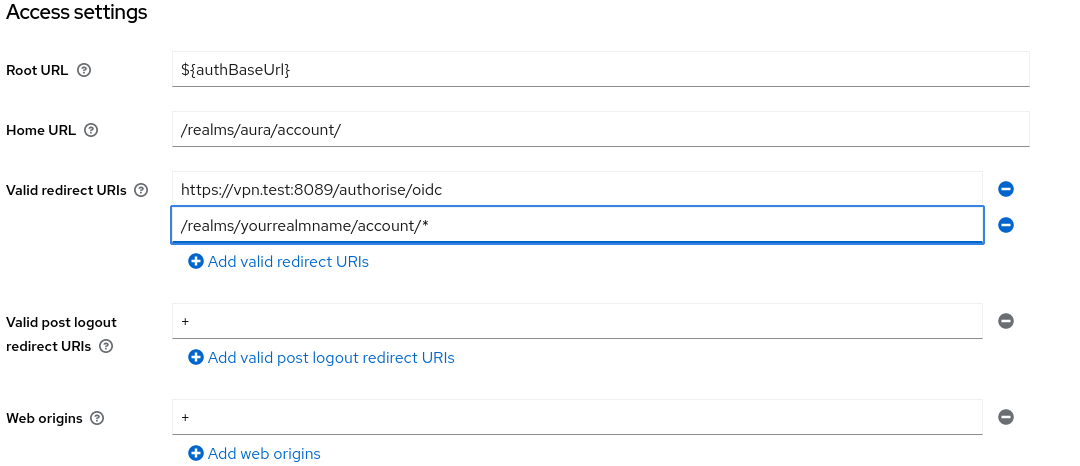

2. Set your valid redirect URLS to your vpn domain with /api/oidc/authorise/callback as the redirection path, also add + in web origins to automatically add the redirection URLs to Origin allow list:

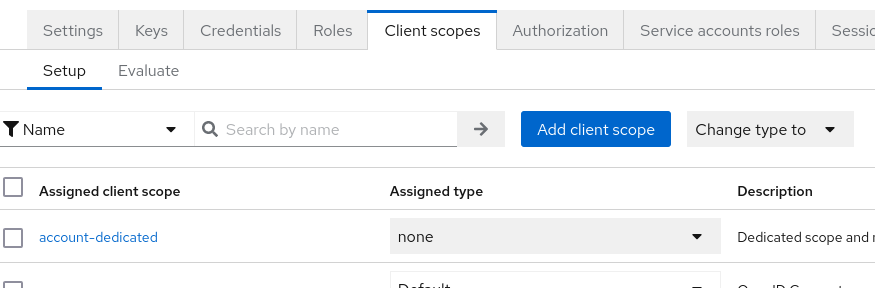

3. Then go to Client Scopes, Click on the *-dedicated scope, in this example account-dedicated

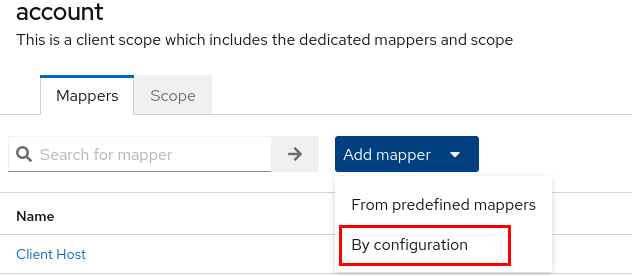

4. Add a mapper: By configuration



5. Choose the Group Membership mapper



6. Set Name and Token Claim Name to groups (or whatever group name you want, update the wag config file if not groups) disable Full group path:



7. Get ClientID and Client Secret from Credentials

Configuring Wag

Web UI

Go to Settings -> Authentication, enable Single Sign On

config.json

For OIDC to be properly enabled, the following fields in the wag configuration file must be set:

Webserver.Tunnel.Domain: The internal wag VPN host domain. E.g the host users visit to MFA
Webserver.Tunnel.OIDC.IssuerURL: The OIDC provider path
Webserver.Tunnel.OIDC.ClientID: The OIDC client ID, what we got in step 7.
Webserver.Tunnel.OIDC.ClientSecret: The OIDC secret, what we got in step 7.

Additionally, these optional fields may be defined. This is if your OIDC provider defines its user groups in something non-standard, i.e not groups. Webserver.Tunnel.OIDC.GroupsClaimNameWebserver.Tunnel.OIDC.Scopes: Optional required scopes

You may also want to restrict users to only using the OIDC provider. Which you can do by setting the Webserver.Tunnel.Methods to ["oidc"].

Info

For keycloak the Webserver.Tunnel.OIDC.IssuerURL will be http://your.idp.domain/realms/<realm_name>

So as an example here is a fragment of a wag configuration file:

  "Webserver": {
        "Lockout": 5,

        "Tunnel": {
            "Domain": "vpn.test",
            "Port": "8080",

            "MaxSessionLifetimeMinutes": 2,
            "SessionInactivityTimeoutMinutes": 1,

            "HelpMail": "[email protected]",

            "DefaultMethod": "totp",
            "Issuer": "vpn.test",
            "Methods": [
                "oidc"
            ],
            "OIDC": {
                "IssuerURL": "https://sso.domain.tld/realms/your-realm-name",
                "ClientSecret": "SecretKey",
                "ClientID": "wag-uat",
                "GroupsClaimName": "groups"
            },
        }
}

Gotchas/Troubleshooting

Help my device says it's owned by another user?

Wag strictly checks that the device owner (i.e the user that the registration token was generated for) is equal to the username that the identity provider issues.
This is so one user can't go on another users device and grant it access to additional routes which may not be appropriate for that device.

As such your user may have been provided with a wireguard configuration file, or registration token that had the wrong username associated with it.

Invalid redirection despite correct route

If the IssuerURL has a trailing / this may cause the underlying OIDC library to fail in matching the issuer to your KeyCloak returned issuer. Just remove the slash.
